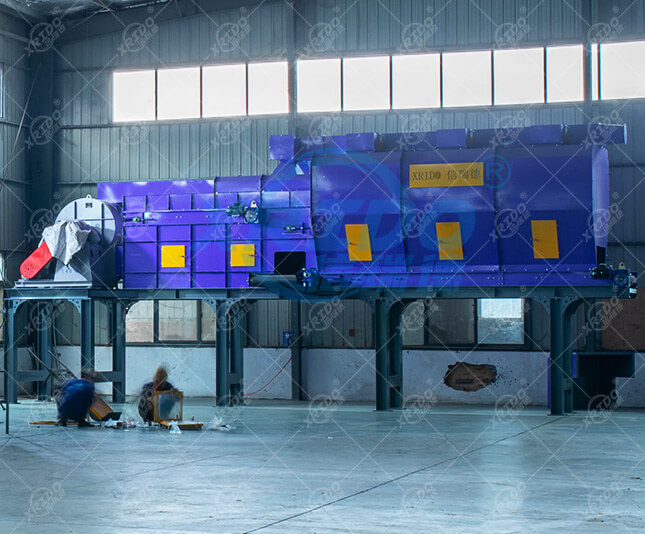

Air Separator
Capacity : as customer requirement how many sets annually .
Applicable Material : Light material as: shopping bag, weaving bag, paper chip , heavy material(mixed materials with large differences of density and specific gravity).
Product Description
Air separator machine is mainly used to the aerodynamics, the light material, middle material and heavy material will be sorted out under the positive and negative air pressure. light materials will be taken up or horizontally into the settling tank, then discharged by the belt conveyor.
The heavy material is down to the conveyor for the upward air pressure can not bear the weight, they will be discharged by conveyor.
CA70 is our location at the 14th Indonesia Waste & Recycling 2024 Expo & Forum. Please leave your contact information and look forward to meeting you.

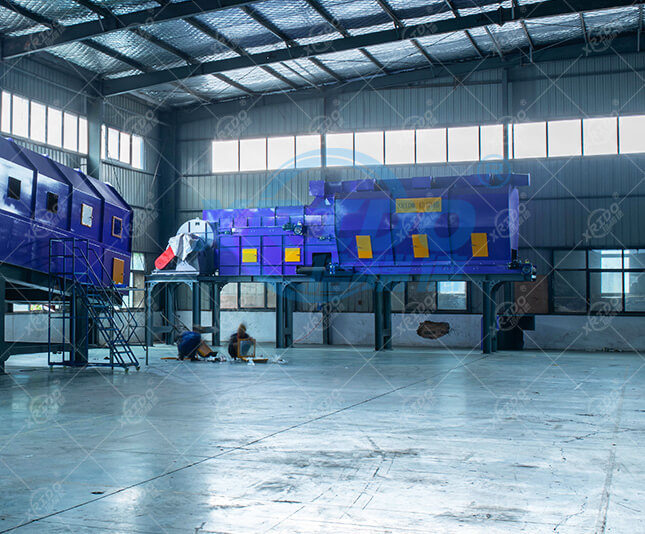

Customer Site - Sorting and Recycling Plants:
Advantage of Air separator:
1. Negative sorting, no dust exhaust in air.
2. Wind speed controlled by VFD to satisfy different material separating, including the wet material.
3. Modular designed, good performance, low maintenance.
4. It takes the double blower and settle to sort the heavy, light, and middle light material.
5. Less spare part, lower time of maintenance.
6. Integrated design of electronic control,plug and play.
Case of Waste Sorting System
Technical Parameters
| Model | Capacity (t/h) | Power (kw) | The Details of Power (kw) |
| RDL-600 | 20 | 26.7 | 7.5+5.5+5.5+3+3+2.2 |
| RDL-800 | 40 | 37 | 11+7.5+7.5+4+4+3 |
| RDL1000 | 60 | 44 | 15+7.5+7.5++5.5+5.5+3 |
| RDL-1200 | 80 | 55.5 | 18.5+11+11+5.5+5.5+4 |
| RDL-1400 | 100 | 59 | 22+11+11+5.5+5.5+4 |
| RDL-1600 | 120 | 79 | 30+15+15+7.5+7.5+4 |
