Bulky Waste Crushing Sorting Line

Input Size : Customize.

Product Application : Waste Recycling industry

Applicable Material : Furniture ,mattress, Home appliances, Construction and decoration waste, Other large objects.

Product Description

The bulky garbage crushing, sorting and recycling system mainly adopts the "crushing + sorting + recycling" process to convert bulky garbage into reusable resources after crushing, volume reduction and sorting. Its working principle is that the chain conveyor transports large pieces of garbage to the crusher, where it is broken into smaller materials. The iron remover sorts out wires, iron sheets and other metals, and other materials are packaged and transported or briquetted. Finally, the waste in the garbage Metal, knitted fabrics, plastics and wood will enter their respective recycling channels, where metals will be re-smelted and reused, knitted fabrics will be processed into recycled cotton, wood and plastic will be processed into recycled wood, plastic or RDF burning rods, and finally into Waste incineration plants become fuel.

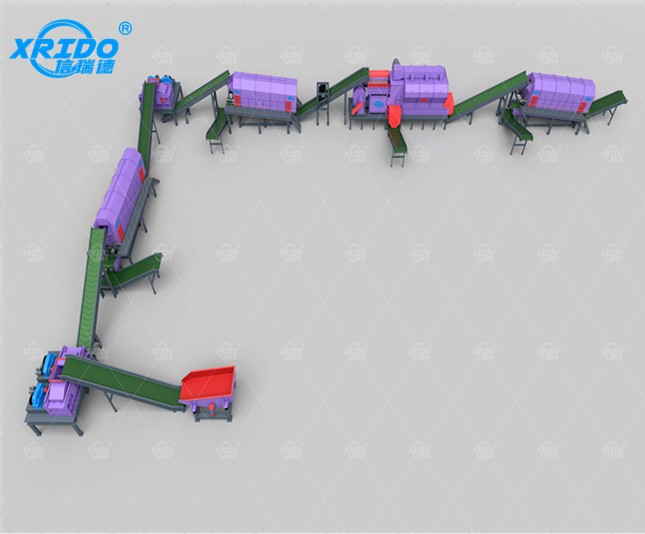

Bulky Waste crushing and sorting process:

The output particles after shredding scrap metal can be customized.

  • metal sorting process
  • metal sorting process
  • metal sorting process
  • metal sorting process

The whole system comes with dust collection system.

APPLICABLE

Furniture ,mattress

Home appliances

Construction and decoration waste

Other large objects

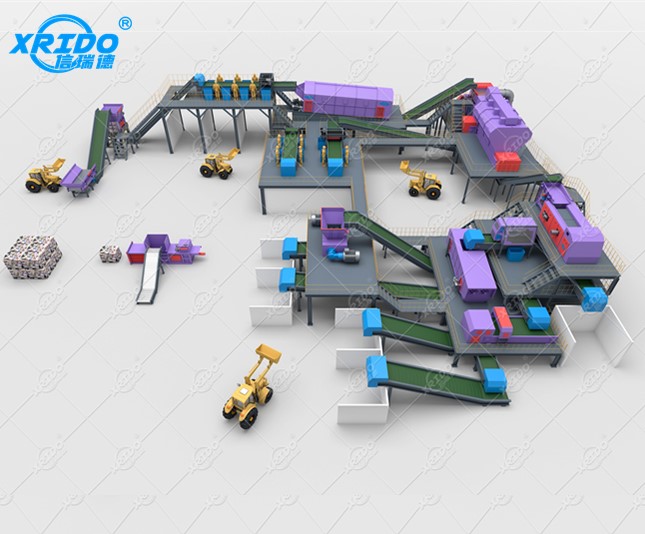

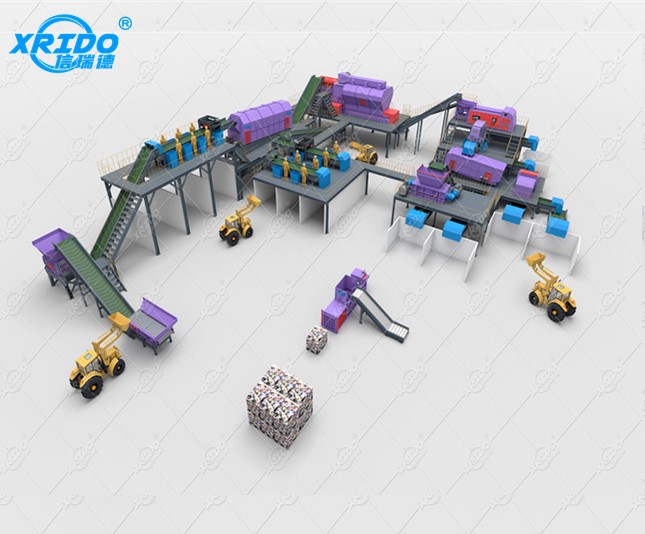

Bulky waste processing system:

  • case of Bulky Waste Shredder
  • case of Bulky Waste Shredder
  • case of Bulky Waste Shredder
  • case of Bulky Waste Shredder

Applicable Waste Disposal System Material:

  • Bulky Waste
  • Bulky Waste
  • Bulky Waste
  • Bulky Waste
  • Domestic-Waste
  • Domestic-Waste
  • Domestic-Waste
  • Bulky-Waste

FINAL PRODUCT

  • Bulky Waste
  • Bulky Waste
  • biomass pellet

Discharge particle size can be customized.

Technical Parameters

Model Voltage Powerkw) Production capacity (t/h) Configure auxiliary machine
XRD-140 380V 132 2-3 1 feeding conveyor

1 discharge conveyor

1 iron conveyor

1 impurity conveyor

1 magnetic separation system

1 dust removal system

Intelligent visualization system (optional 1 set)

Set of spray system (optional 1 set)

XRD-200 380V 200 3-5
XRD-280 380V 280 4-7
XRD-315 380V 315 5-8
XRD-450 380V/10KV 450 8-12
XRD-630 10KV 630 10-15
XRD-750 10KV 750 12-17
XRD-800 10KV 800 15-20
XRD-900 10KV 900 20-30
1500horsepower 10KV 1200 25-40
2000horsepower 10KV 1500 50-60
3000horsepower 10KV 2250 60-80
4000horsepower 10KV 3000 80-100
6000horsepower 10KV 4420 100-160
8000horsepower 10KV 6000 160-200
10000horsepower 10KV 7500 200-260
