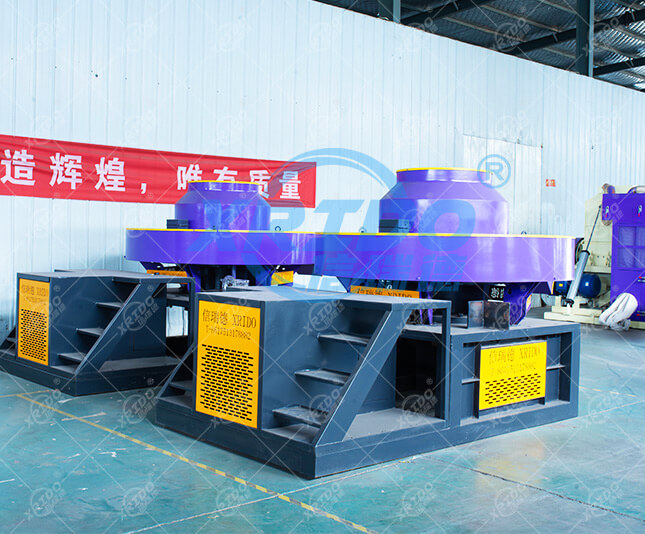

RDF Briquette Machine ( Biomass Pellet Machine )
Input Size : Customize.
Applicable Material : waste solid waste, biomass, wood sawdust, garbage derived fuel, waste paper, cow dung manure, paper, waste clothes, etc.
Product Description
The RDF Briquette Machine can press wastes into briquettes by high-speed compression. Increase the proportion of biomass, extend the burning time, and facilitate storage and transportation. The machine is consisted of forming system, outlet, heating ring and control cabinet.
The raw mateirals can be waste solid waste, biomass, wood sawdust, garbage derived fuel, waste paper, cow dung manure, paper, waste clothes, etc.
The finished cube briquette is easy to storage and transportation. Widey used for heating stove, power plant and biogas fermentation. The finished briquette shape can be shape or round.
RDF Briquette Production Process:
Biomass Pellet Production Process:
XRIDO can provide the complete turnkey project biomass wood pellet production line, from design to install . Whether you want to produce wood pellet, sawdust pellet ,rice husk pellet, EFB pellet ，grass pellet or organic fertilizer pellet, the capacity is 1-100TPH can be choose.
Finished product display:
Applicable Press Machine Material:
-
Biomass
-
Waste paper
-
Waste cloth/textile/leather
-
Plastic waste
Advantage of Press Machine:
1.Reasonable structure,simple operation,high efficiency production and reliable use.
2.This machine is suitable for molding of biomass fuels, It is an important device for the green environmental protection industry.
3.With the advanced feeding device and ring mold technology improvement, the discharge rate is faster under the premise of 100% forming rate. The increase of the discharge port makes the production cost lower under the same employment. The special design principle reduces the original power consumption by more than 50% and improves the output.
4.Molding die has a high temperature preheating function, a wide range of applications, and low moisture requirements for the material.
Details of Press Machine
Technical Parameters
| Model | Power | Capacity | Pellet size(mm) | Dimension(mm) | Weight |
| XCN-YK600 | 55kw | 0.8-1ton/h | 32*32*50-100 | 2800*1350*1800 | 2800kg |
| XCN-YK800 | 75kw | 1.5-2ton/h | 32*32*50-100 | 3500*1900*2200 | 3800kg |
| XCN-YK1000 | 110kw | 2-3ton/h | 32*32*50-100 | 3700*2100*2200 | 4800kg |
| XCN-YK1200 | 200kw | 4-6ton/h | 32*32*50-100 | 4700*2750*2600 | 16000kg |
