Scrap Car Shell Shredder
Input Size : Customize
Output Capacity : 2-260t/h
Applicable Material : Car body, scrap aluminum, scrap steel, scrap iron, paint bucket, color steel tile, iron pressure block, motorcycle frame, bicycle frame, waste household appliances, carriage plate, keel bar, rolling gate, waste angle iron and other waste metals.
Product Description
In car recycling business, normally the motors, transmissions, axles , hub and wheels are removed in advance, because as valuable parts, they can be sold at a higher price, and some parts can be used for maintenance use.
When these are moved, the car body can be shredded into metal fractions, even with further processing to make them into dense metal, all these can be sold to steel mill to be melted and reuse again.
Products Show
The output particles after shredding scrap metal can be customized.
-
Metal Crusher
-
Metal Shredder
-
Metal Shearing Machine
-
Scrap Metal Crushing Plant
Applicable materials
The metal shredder is mainly used for crushing scrap metal, increasing its bulk density for transportation and recycling.
This equipment is widely used in shredding Car body, scrap aluminum, scrap steel, scrap iron, paint bucket, color steel tile, iron pressure block, motorcycle frame, bicycle frame, waste household appliances, carriage plate, keel bar, rolling gate, waste angle iron and other waste metals.
Metal Crushing Recycling Plant
We can customize metal crushing and recycling production line for you.
-
Scrap Metal Shredder Sorting Line
-
Waste Aluminum Crushing Production Line
-
Water Radiator Crushing Sorting Line
-
Scrap Steel Crushing Recycling Line

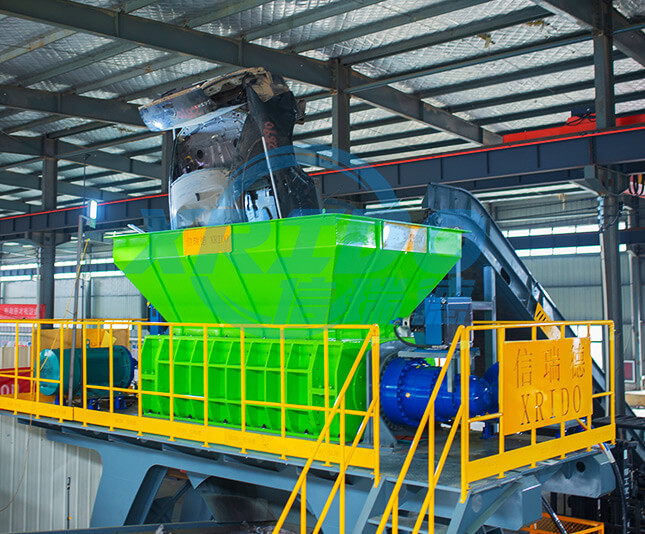

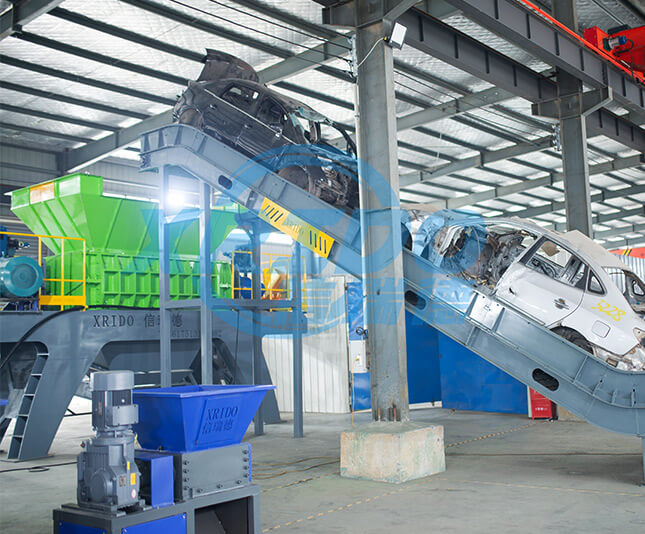

Cases of the Metal Shredder
WORKING PRINCIPLE
1.Feed hopper: Put the material to be crushed, so as to prevent the material from splashing out;
2.Double shaft cutting system:Using different blades according customer's materials;
3.Power system:We choose famous brands of motor in China, can also be configured according to customer needs;
4.Discharging conveyor system:It adopts independent power system, and that power system is integrally fixed on the shredder by bolts, so that the power system can be integrally drawn out.

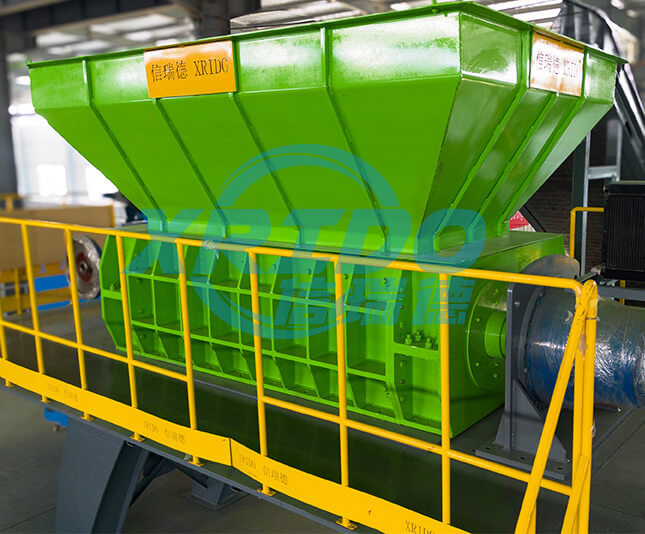

Details of double shaft shredder
FEATURES
1, High performance, strong powerful and high speed crushing.
2, Motor with overload protection device.
3, Supply chain environmental protection system, ensure safe operation.
4, Easy disassembly design, convenient clean-up and repair.
5, Minicomputer with a four-wheel for easy mobility.
6, More than 20HP plastic crusher is equipped with cooling system.
7, Suitable for recycle and restore of all kinds of plastic, particulary for various hard plastic, e.g. blow molded products and shoel last.
Technical Parameters
| Model | Power (KW） | Rotating speed (r/min） | Dimensions L/W/H（mm） | Crushing cavity size C/D(mm) | Diameter of knife body （mm） |
| XCS-56 | 15+15 | 6-20 | 2800×1300×1850 | 600×500 | 220 |
| XCS-58 | 18.5+18.5 | 6-20 | 3000×1300×1850 | 800×500 | 220 |
| XCS-710 | 30+30 | 6-20 | 3300×1900×2200 | 1000×700 | 320 |
| XCS-812 | 37+37 | 6-20 | 3600×2000×2200 | 1200×800 | 400 |
| XCS-815 | 45+45 | 6-20 | 4180×2100×2400 | 1500×850 | 450 |
| XCS-918 | 75+75 | 6-20 | 5800×2400×3300 | 1800×900 | 500 |
| XCS-1020 | 90+90 | 6-20 | 6400×2700×3500 | 2000×1000 | 600 |
| XCS-1522 | 110+110 | 6-20 | 7800×3200×3800 | 2200×1500 | 800 |
